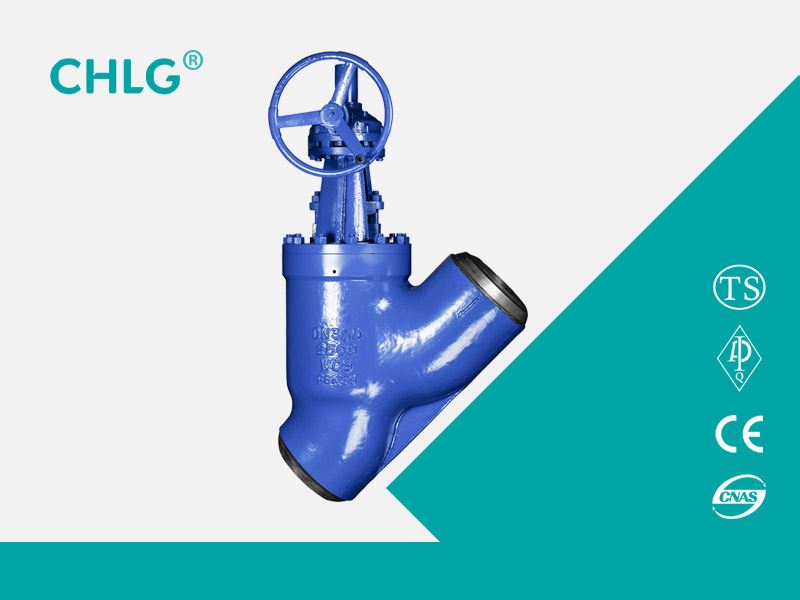

The Y-type globe valve is suitable for cutting or connecting the medium on the pipelines of various working conditions such as petroleum, chemical, pharmaceutical, chemical fertilizer, power industry, etc. with nominal pressure PN1.6 ～ 6.4Mpa and working temperature -29 ～ 550 ℃. Applicable medium: water, oil, steam, acid medium, etc. Operation methods are: manual, pneumatic.
Product Usage
The Y-type globe valve is suitable for cutting or connecting the medium on the pipelines of various working conditions such as petroleum, chemical, pharmaceutical, chemical fertilizer, power industry, etc. with nominal pressure PN1.6 ～ 6.4Mpa and working temperature -29 ～ 550 ℃. Applicable medium: water, oil, steam, acid medium, etc. Operation methods are: manual, pneumatic.
Implementation Standards
Design and manufacture of standards: ASME B16.34, JB / T3595, E101
Structure length standard: GB / T 12221-2005
Socket Socket: ASME B16.11
Butt welding end: ASME B16.25
Pressure temperature grade: GB / T 12224-2005
Test test standards: JB / T3595
Product parts materials
|
Serial number |
Part Name |
material |
|
1 |
Body |
25+Stellite 21,F22+Stellite 21 |
|
2 |
Disc |
25+Stellite 6,F22+Stellite 6 |
|
3 |
Valve stem |
1Cr13,25Cr2Mo1V,17-4PH |
|
4 |
Stuffing box |
25,F22 |
|
5 |
cap |
25,F22 |
|
6 |
Stem nut |
QAL9-4,D2 |
|
7 |
Platen |
1Cr13,F22 |
|
8 |
filler |
Import GARLOCK folder stainless steel wire braided flexible graphite |
|
9 |
Pad filler |
1Cr13 |
|
10 |
Gasket |
Clip 316 high-soft graphite |
|
caliber |
Class 1500 |
Class 2500 |
||||||||
|
L |
D |
W |
H |
Wt(kg) |
L |
D |
W |
H |
Wt (kg) |
|
|
1/2〃 |
152 |
60 |
216 |
298 |
13 |
152 |
60 |
216 |
298 |
13 |
|
3/4〃 |
152 |
60 |
216 |
298 |
13 |
152 |
60 |
216 |
298 |
13 |
|
1〃 |
152 |
60 |
216 |
298 |
13 |
152 |
60 |
216 |
298 |
13 |
|
1-1/4〃 |
170 |
81 |
216 |
326 |
15.8 |
170 |
81 |
216 |
326 |
15.8 |
|
1-1/2〃 |
170 |
81 |
216 |
326 |
15.8 |
170 |
81 |
216 |
326 |
15.8 |
|
2〃 |
272 |
102 |
363 |
427 |
37.8 |
272 |
102 |
363 |
427 |
37.8 |
|
2-1/2〃 |
325 |
122 |
406 |
474 |
63 |
325 |
122 |
406 |
474 |
63 |
|
3〃 |
325 |
122 |
406 |
474 |
63 |
325 |
122 |
406 |
474 |
63 |
|
4〃 |
325 |
122 |
406 |
474 |
63 |
325 |
122 |
406 |
474 |
63 |
