  Location — Globe valve  — Stainless Steel Ammonia Globe Valve
Name:

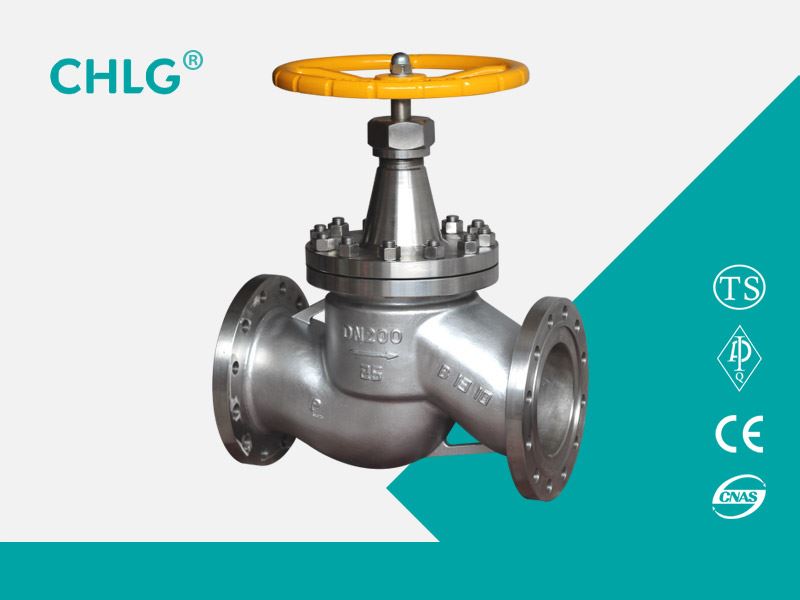

Stainless Steel Ammonia Globe Valve

Category:

Globe valve

Remark:

J41B type PN40 globe valve for ammonia: manual, flange connection, straight-through, seat sealing surface material is nylon plastic, nominal pressure PN40, valve body material is carbon steel stop valve. Applicable medium: liquid, gas, ammonia, nitrogen, hydrogen.

Inquiry Contact us

product manual

J41B type PN40 globe valve for ammonia: manual, flange connection, straight-through, seat sealing surface material is nylon plastic, nominal pressure PN40, valve body material is carbon steel stop valve. Applicable medium: liquid, gas, ammonia, nitrogen, hydrogen.


Structure and purpose
1. The center flange is a square structure, and the stem is connected by a hidden rod.
2. The sealing surface of the valve body adopts a spherical convex shape, which is in line with the valve flap to seal.
3. The sealing surface is made of Babbitt alloy, which has good sealing performance and long service life.

Product parts materials

product type

Part Name

Body, bonnet

Valve stem

filler

Sealing surface

Gasket

fastener

J41B-(16/25)P

stainless steel

stainless steel

Teflon

Babbitt

Asbestos plastic sheet

stainless steel



Product appearance and structure size

Nominal diameter

The main dimensions and connection dimensions

L

D

D1

D2

b

Z-d

H

D0

J41B-16C

15

130

95

65

45

14-2

4-Φ14

170

120

20

150

105

75

55

14-2

4-Φ14

190

140

25

160

115

85

65

14-2

4-Φ14

205

160

32

180

135

100

78

16-2

4-Φ18

270

180

40

200

145

110

85

16-3

4-Φ18

310

200

50

230

160

125

100

16-3

4-Φ18

358

240

65

290

180

145

120

18-3

4-Φ18

373

240

80

310

195

160

135

20-3

8-Φ18

435

280

100

350

215

180

155

20-3

8-Φ18

500

300

125

400

245

210

185

22-3

8-Φ18

614

320

150

480

280

240

210

24-3

8-Φ23

674

360

200

600

335

295

265

26-3

12-Φ23

811

400

250

650

405

355

320

30-3

12-Φ25

969

450

300

750

460

410

375

30-3

12-Φ25

1145

580

350

850

520

470

435

34-4

16-Φ25

1280

640

400

980

580

525

485

36-4

16-Φ30

1452

640

J41B-25C

15

130

95

65

45

16-2

4-Φ14

170

120

20

150

105

75

55

16-2

4-Φ14

190

140

25

160

115

85

65

16-2

4-Φ14

205

160

32

180

135

100

78

18-2

4-Φ18

270

180

40

200

145

110

85

18-3

4-Φ18

310

200

50

230

160

125

100

20-3

4-Φ18

358

240

65

290

180

145

120

22-3

8-Φ18

373

240

80

310

195

160

135

22-3

8-Φ18

435

280

100

350

230

190

160

24-3

8-Φ23

500

300

125

400

270

220

188

28-3

8-Φ25

614

320

150

480

300

250

218

30-3

8-Φ25

674

360

200

600

360

310

278

34-3

12-Φ25

811

400

250

650

425

370

332

36-3

12-Φ30

969

450

300

750

485

430

390

40-4

16-Φ30

1145

580

350

850

550

490

448

44-4

16-Φ34

1280

640

400

980

610

550

505

48-4

16-Φ34

1452

640
