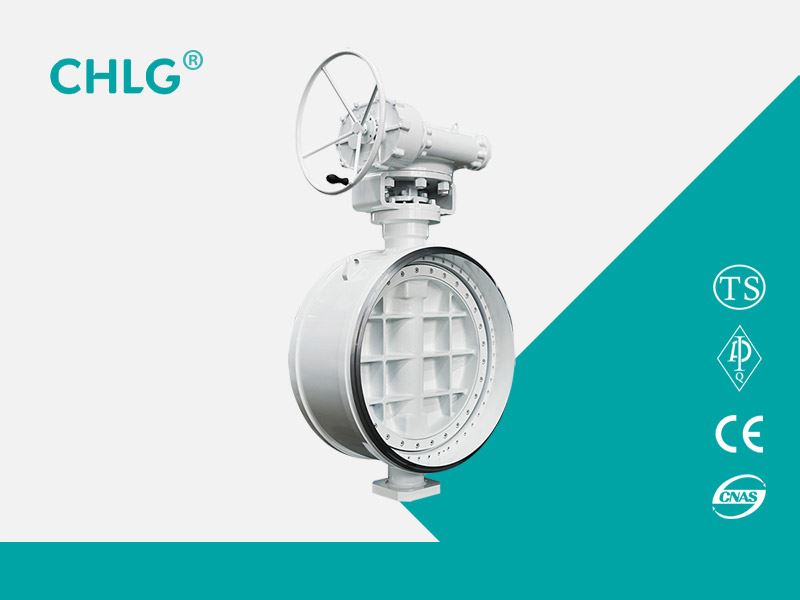

Bidirectional Metal Hard Touch Hard Butterfly Valve

Category:

Butterfly valve

Remark:

D363H, D363W type three partial metal hard-impact hard seal butterfly valves are widely used in metallurgy, electric power, petroleum, chemical industry, air, gas, combustible gas and water supply and drainage pipelines with corrosive media.

Inquiry Contact us

【Product Usage】

D363H, D363W type three partial metal hard-impact hard seal butterfly valves are widely used in metallurgy, electric power, petroleum, chemical industry, air, gas, combustible gas and water supply and drainage pipelines with corrosive media.


[Standard Specification]

Design and manufacturing standard: GB / T 12238-2008
Structural length standard: GB / T 12221-2005
Connection flange standard: GB / T 9113
Pressure and temperature grade: GB / T 12224-2005
Test and inspection standard: GB / T 13927-2008


【Structural features】

  1. The hard seal butterfly valve adopts a three-eccentric pure metal seal structure, the valve seat and the butterfly plate have almost no wear, and have a tighter sealing function.
    2. The sealing ring is made of stainless steel, which has the advantages of metal hard sealing. It has excellent sealing performance under low and high temperature conditions, has the characteristics of corrosion resistance and long service life.
    3. The sealing surface of the butterfly plate adopts surfacing cobalt-based hard alloy. The sealing surface is wear-resistant and has a long service life.
    4. Large size butterfly board adopts quilt frame structure, high strength, large flow area and small flow resistance.
    5. According to user needs, the hard sealing butterfly valve of the valve supply network can be designed to have a two-way sealing function. It is not restricted by the flow direction of the medium during installation, nor is it affected by the position of the space. It can be installed in any direction.
    6. The driving device can be installed in multiple stations (rotation 90 ° or 180 °), which is convenient for users.


[Main performance specifications]

Nominal diameter

DN (mm)

50-4000

Nominal pressure

PN (MPa)

1.0

1.6

2.5

test pressure

Strength test

1.5

2.4

3.75

Seal test

1.1

1.76

2.75

Airtight test

0.6

0.6

0.6



【Product parts and materials】

model

D343H-16

D343W-16P

D343W-16R

Working pressure (MPa)

1.6

Applicable temperature (℃)

≤425

≤200

Applicable medium

Water, oil or non-corrosive media

Nitric acid medium

Acetic acid media

material

Valve body, butterfly plate

WCB

CF8 / 304

CF3M / 316L

Stem

2Cr13

304

316L

Valve body sealing surface

Surfacing 507

-

-

Butterfly plate sealing surface

304

304

304

filler

Flexible graphite

PTFE

PTFE


【Main appearance and connection size】

PN

DN

L

D

D1

D2

Zd

b

f

H

H0

1.0

50

108

165

125

99

4-18

20

2

170

130

1.0

65

112

185

145

118

4-18

20

2

170

145

1.0

80

114

200

160

132

8-18

20

2

230

152

1.0

100

127

220

180

156

8-18

twenty two

2

320

192

1.0

125

140

250

210

184

8-18

twenty two

2

345

200

1.0

150

140

285

240

211

8-22

twenty four

2

385

230

1.0

200

152

340

295

266

8-22

twenty four

2

471

297

1.0

250

165

405

355

319

12-22

26

2

533

327

1.0

300

178

445

400

370

12-22

26

2

606

364

1.0

350

190

505

460

429

16-22

26

2

694

404

1.0

400

216

565

515

480

16-26

26

2

757

444

1.0

450

222

615

565

530

20-26

28

2

814

472

1.0

500

229

670

620

582

20-26

28

2

902

522

1.0

600

267

780

725

682

20-30

34

2

1048

590

1.0

700

292

895

840

794

24-30

34

5

1277

810

1.0

800

318

1015

950

901

24-33

36

5

1385

844

1.0

900

330

1115

1050

1001

28-33

38

5

1490

890

1.0

1000

410

1230

1160

1112

28-36

38

5

1620

950

1.6

50

108

165

125

99

4-18

20

2

170

130

1.6

65

112

185

145

118

4-18

20

2

170

145

1.6

80

114

200

160

132

8-18

20

2

230

152

1.6

100

127

220

180

156

8-18

twenty two

2

320

192

1.6

125

140

250

210

184

8-18

twenty two

2

345

200

1.6

150

140

285

240

211

8-22

twenty four

2

385

230

1.6

200

152

340

295

266

12-22

twenty four

2

471

297

1.6

250

165

405

355

319

12-26

26

2

533

327

1.6

300

178

460

410

370

12-26

28

2

606

364

1.6

350

190

520

470

429

16-26

30

2

694

404

1.6

400

216

580

525

480

16-30

32

2

757

444

1.6

450

222

640

585

548

20-30

40

2

814

472

1.6

500

229

715

650

609

20-33

44

2

902

522

1.6

600

267

840

770

720

20-36

54

2

1048

590

1.6

700

292

910

840

794

24-36

40

5

1277

810

1.6

800

318

1025

950

901

24-39

42

5

1385

844

1.6

900

330

1125

1050

1001

28-39

44

5

1490

890

1.6

1000

410

1225

1170

1112

28-42

46

5

1620

950

2.5

50

108

165

125

99

4-18

20

2

170

130

2.5

65

112

185

145

118

8-18

twenty two

2

265

210

2.5

80

114

200

160

132

8-18

twenty four

2

310

233

2.5

100

127

235

190

156

8-22

twenty four

2

343

242

2.5

125

140

270

220

184

8-26

26

2

385

254

2.5

150

140

300

250

211

8-26

28

2

445

580

2.5

200

152

360

310

274

12-26

30

2

510

297

2.5

250

165

425

370

330

12-30

32

2

569

339

2.5

300

178

485

430

389

16-30

34

2

653

375

2.5

350

190

555

490

448

16-33

38

2

730

420

2.5

400

216

620

550

503

16-36

40

2

810

463

2.5

450

222

670

600

548

20-36

46

2

850

495

2.5

500

229

730

660

609

20-36

48

2

940

566

2.5

600

267

845

770

720

20-39

58

2

1150

630

2.5

700

292

960

875

820

24-42

58

5

1195

727

2.5

800

318

1085

990

609

24-36

58

5

1268

810
