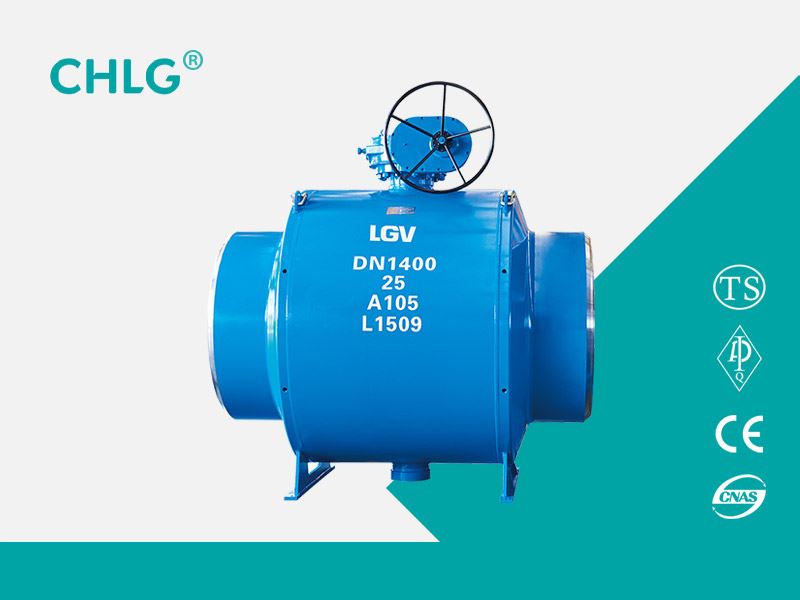

Q361F PN1.6-PN2.5 all-welded ball valve is widely used in various fields. Its superior quality and high-performance stability can not be achieved by ordinary cast steel ball valve. The service life of all-welded ball valves is much longer than that of cast steel ball valves. All-welded ball valves are widely used in urban gas, urban heating, petrochemical, shipbuilding, steel, pressure regulating stations, power plants and other pipeline equipment.
Product Usage
Q361F PN1.6-PN2.5 all-welded ball valve is widely used in various fields. Its superior quality and high-performance stability can not be achieved by ordinary cast steel ball valve. The service life of all-welded ball valves is much longer than that of cast steel ball valves. All-welded ball valves are widely used in urban gas, urban heating, petrochemical, shipbuilding, steel, pressure regulating stations, power plants and other pipeline equipment.
Features
1. Fully welded ball valve, there will be no external leakage and other phenomena. The processing of the sphere is tracked by an advanced computer detector, so the processing accuracy of the sphere is high.
2. Since the material of the valve body is the same as the material of the pipeline, there will be no uneven stress or deformation due to earthquakes and vehicles passing through the ground, and the pipeline is resistant to aging.
Skills Requirement
1. Design and manufacture according to API 6D.
2. The inspection and test of the valve shall be in accordance with API 598.
3. The structural length of the valve is in accordance with GB / T12224-2005.
4. The connection size is in accordance with GB / T12224-2005.
5. The pressure-temperature reference is in accordance with ASME B16.34.
6. The valve marking shall be in accordance with GB / T12220.
7. The sulfur resistance of the valve is in accordance with the regulations of NACE MR 0175.
Parts of the product material
|
Serial number |
Name |
Material |
Serial number
|
Name |
Material |
|
1 |
Cap |
ASTM A105 |
21 |
Thrust bearings |
PTFE |
|
2 |
Body |
ASTM A105 |
22 |
Slide bearings |
304+PTFE |
|
3 |
Sphere |
ASTM A105+ENP |
23 |
On the support seat |
ASTM A105 |
|
4 |
Anti-static spring |
Assembly |
24 |
O-ring |
VITON |
|
5 |
Thrust bearings |
PTFE |
25 |
O-ring |
VITON |
|
6 |
Slide bearings |
304+PTFE |
26 |
Y-ring |
VITON |
|
7 |
Lower stem |
ASTM A105 |
27 |
Fire pad |
SS304+graphite |
|
8 |
Bottom cover |
ASTM A105 |
28 |
Filler |
Graphite |
|
9 |
Drain valve |
ASTM A105+ENP |
29 |
Socket head cap screws |
ASTM A193 B7 |
|
10 |
O-ring |
VITON |
30 |
Socket head cap screws |
ASTM A193 B7 |
|
11 |
Fire pad |
SS304+ graphite
|
31 |
Valve stem |
ASTM A182 F6a |
|
12 |
Socket head cap screws |
ASTM A193 B7 |
32 |
Cylindrical pin |
35 |
|
13 |
Footsteps |
A3 |
33 |
Studs |
ASTM A193 B7 |
|
14 |
Seat |
PPL |
34 |
Nut |
ASTM A194 2H |
|
15 |
Seat fire pad |
SS304+graphite |
35 |
Spring washer |
65Mn |
|
16 |
Spring support seat |
ASTM A105 |
36 |
Land |
ASTM A105 |
|
17 |
Spring |
17-7PH |
37 |
Flat key |
45 |
|
18 |
O-ring |
VITON |
38 |
Turbine |
ASTM A105-HZn |
|
19 |
Seat support ring |
ASTM A105+ENP |
39 |
Vent valve |
ASTM A105-HZn |
|
20 |
Slide bearings |
304 |
|
|
|
Main connection size
Q61F/Q361F-Q41F/Q341F PN16/PN25/PN40
|
DN |
L(RF） |
L（WE） |
D1 |
D2 |
H1(handle） |
H1(turbine） |
W(handle） |
W(turbine） |
|
15 |
150 |
210 |
27 |
48 |
64 |
- |
129 |
- |
|
20 |
160 |
230 |
34 |
60 |
76 |
- |
159 |
- |
|
25 |
180 |
230 |
42 |
76 |
85 |
- |
159 |
- |
|
32 |
200 |
260 |
48 |
89 |
95 |
- |
245 |
- |
|
40 |
230 |
300 |
60 |
89 |
124 |
- |
245 |
- |
|
50 |
270 |
300 |
76 |
114 |
162 |
- |
30 |
- |
|
65 |
280 |
300 |
89 |
140 |
175 |
- |
320 |
- |
|
80 |
300 |
325 |
114 |
168 |
192 |
169 |
450 |
- |
|
100 |
350 |
325 |
141 |
203 |
205 |
183 |
450 |
230 |
|
125 |
350 |
350 |
168 |
219 |
225 |
203 |
450 |
230 |
|
150 |
400 |
400 |
219 |
273 |
245 |
224 |
1000 |
230 |
|
200 |
502 |
521 |
273 |
351 |
285 |
262 |
1000 |
320 |
|
250 |
568 |
560 |
325 |
426 |
348 |
322 |
1500 |
350 |
|
300 |
648 |
635 |
377 |
508 |
|
355 |
|
350 |
Q367F/Q347F PN16/PN25/PN40
|
DN |
L(RF） |
L（WE） |
D1 |
D2 |
H1 |
H2 |
W |
|
150 |
403 |
457 |
219 |
273 |
246 |
193 |
280 |
|
200 |
502 |
521 |
273 |
351 |
285 |
238 |
320 |
|
250 |
568 |
560 |
325 |
426 |
323 |
278 |
320 |
|
300 |
648 |
635 |
377 |
508 |
365 |
315 |
400 |
|
350 |
762 |
762 |
426 |
580 |
410 |
370 |
400 |
|
400 |
838 |
838 |
480 |
675 |
457 |
425 |
450 |
|
450 |
914 |
914 |
530 |
740 |
495 |
465 |
450 |
|
500 |
991 |
991 |
630 |
805 |
540 |
495 |
500 |
|
600 |
1143 |
1143 |
735 |
975 |
640 |
580 |
500 |
|
700 |
1346 |
1346 |
830 |
1130 |
715 |
660 |
500 |
|
800 |
1524 |
1524 |
930 |
1270 |
785 |
730 |
500 |
|
900 |
1727 |
1727 |
1036 |
1425 |
860 |
820 |
800 |
|
1000 |
1900 |
1840 |
1236 |
1625 |
970 |
920 |
800 |

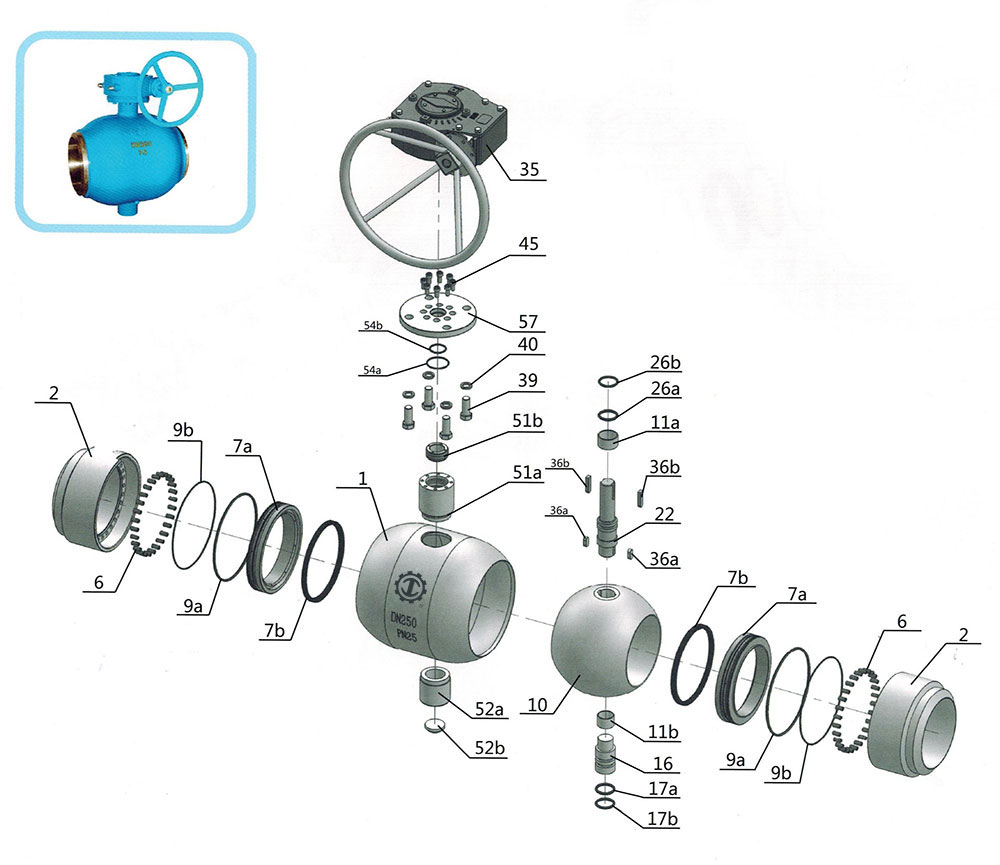

Structure picture
