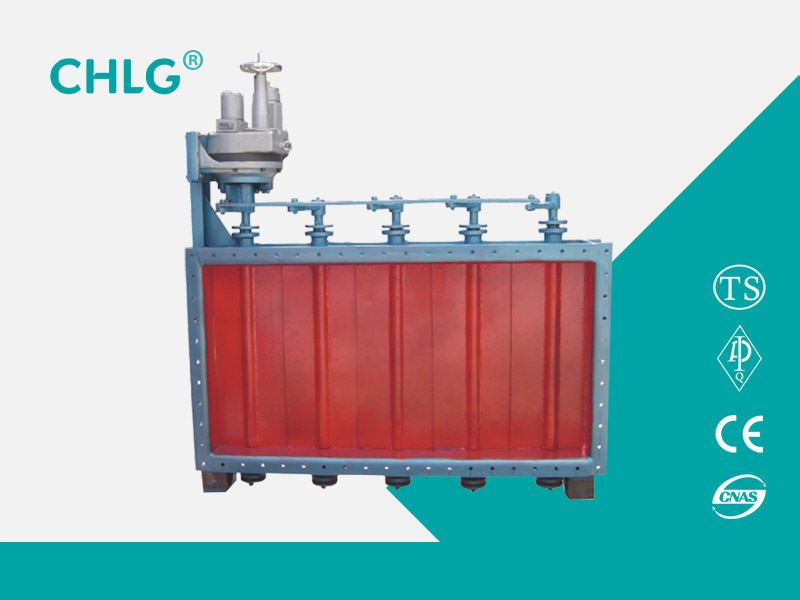

Square damper widely used in building materials, metallurgy, mining, electricity and other production processes, can automatically control or manual control of the medium flow in the pipeline. Electric rectangular blinds produced in Shanghai
Product Usage
Square damper widely used in building materials, metallurgy, mining, electricity and other production processes, can automatically control or manual control of the medium flow in the pipeline. The electric circular louver butterfly valve produced by Shanghai Central adopts butterfly louver structure with even liquid, uniform opening and closing torque, sensitive action and reliable performance. Body material: carbon steel, stainless steel.
Performance parameters
|
Nominal pressurePN |
0.005MPa |
Leak rate |
≤3 |
|
Proper temperature |
-30～350℃ |
Medium flow rate |
≤25m/s |
|
Suitable media |
Dust, dusty gas |
||

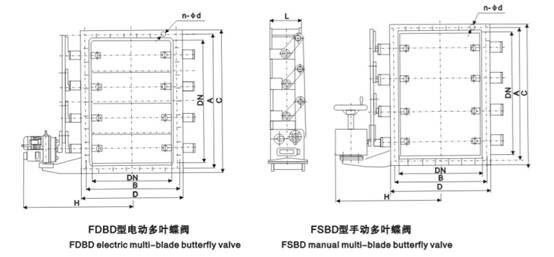

The main shape and connection size
|
A×B |
A1×B1 |
A2×B2 |
L |
L1 |
H1 |
H |
b |
Z-Фd |
X |
Y |
|
320×180 |
375×105 |
400×240 |
180 |
245 |
580 |
735 |
8 |
16-14 |
5 |
3 |
|
320×250 |
375×295 |
400×330 |
180 |
245 |
625 |
825 |
8 |
16-14 |
5 |
3 |
|
400×200 |
455×255 |
500×330 |
200 |
245 |
610 |
805 |
8 |
16-18 |
5 |
3 |
|
400×320 |
455×375 |
500×420 |
200 |
245 |
870 |
915 |
8 |
16-18 |
5 |
3 |
|
500×200 |
555×255 |
600×300 |
220 |
245 |
610 |
805 |
8 |
16-18 |
5 |
3 |
|
500×400 |
555×455 |
600×500 |
220 |
245 |
670 |
915 |
8 |
20-18 |
5 |
5 |
|
630×320 |
685×375 |
730×420 |
220 |
245 |
610 |
805 |
10 |
20-18 |
7 |
3 |
|
630×400 |
685×455 |
730×500 |
220 |
245 |
710 |
995 |
10 |
24-18 |
7 |
5 |
|
800×400 |
855×455 |
900×500 |
240 |
300 |
610 |
945 |
10 |
24-18 |
7 |
5 |
|
800×630 |
855×685 |
900×730 |
240 |
300 |
710 |
995 |
10 |
28-18 |
7 |
7 |
|
1000×500 |
1070×570 |
1130×830 |
260 |
300 |
790 |
1075 |
10 |
24-23 |
7 |
5 |
|
1000×800 |
1070×870 |
1130×930 |
260 |
300 |
905 |
1270 |
10 |
28-23 |
7 |
7 |
|
1250×630 |
1320×700 |
1380×760 |
280 |
300 |
1005 |
1505 |
10 |
32-23 |
9 |
7 |
|
1250×1000 |
1320×1070 |
1380×1130 |
280 |
300 |
1105 |
1705 |
10 |
32-23 |
9 |
7 |
|
1400×800 |
1470×870 |
1530×930 |
300 |
385 |
1075 |
1575 |
10 |
36-23 |
11 |
7 |
|
1400×1250 |
1470×1320 |
1530×1380 |
300 |
385 |
1300 |
2025 |
10 |
40-23 |
11 |
9 |
|
1600×1000 |
1670×1070 |
1730×1130 |
320 |
385 |
1175 |
1775 |
10 |
36-23 |
11 |
7 |
|
1600×1250 |
1670×1320 |
1730×1380 |
320 |
385 |
1300 |
2025 |
10 |
40-23 |
11 |
9 |
|
1800×1250 |
1870×1320 |
1930×1380 |
340 |
420 |
1450 |
2175 |
10 |
44-23 |
13 |
9 |
|
1800×1400 |
1870×1470 |
1930×1530 |
340 |
420 |
1525 |
2325 |
10 |
48-23 |
13 |
11 |
|
2000×1250 |
2070×1320 |
2130×1380 |
360 |
420 |
1450 |
2175 |
10 |
48-23 |
15 |
9 |
|
2000×1800 |
2070×1670 |
2130×1730 |
360 |
420 |
1620 |
2520 |
12 |
52-23 |
15 |
11 |
|
2500×1800 |
2570×1870 |
2630×1730 |
420 |
450 |
1695 |
2595 |
12 |
56-23 |
17 |
11 |
|
2500×2000 |
2570×2070 |
2630×2130 |
420 |
450 |
1895 |
2995 |
12 |
64-23 |
17 |
15 |
|
2800×2500 |
2870×2570 |
2930×2630 |
440 |
450 |
2145 |
3195 |
12 |
72-23 |
19 |
17 |
|
3200×2800 |
3270×2870 |
3330×2930 |
480 |
480 |
2325 |
3825 |
12 |
80-23 |
21 |
19 |
|
3600×3200 |
3670×3270 |
3730×3330 |
520 |
480 |
2525 |
4225 |
12 |
88-23 |
23 |
21 |
|
4000×3600 |
4070×4670 |
4130×4730 |
560 |
480 |
2725 |
4825 |
12 |
100-23 |
27 |
23 |
