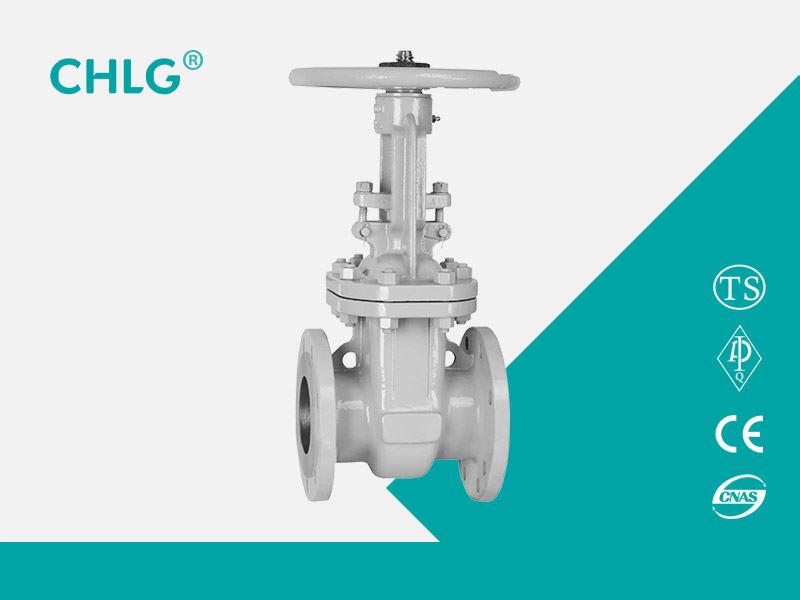

Lianggu valve Co., Ltd. production of the Russian standard flange valve is widely used in petrochemical, thermal power plants and other oil products, water vapor pipeline for access or cut off the medium pipeline opening and closing devices
Product Usage
The Russian standard gate valve manufactured by Lianggu valve Co., Ltd. is widely used in petroleum chemical industry, thermal power plant and other oil products, water vapor pipelines as the opening and closing device for connecting or cutting off the medium in the pipeline.
Features
1. Compact structure, reasonable design, good valve rigidity, smooth passage and small flow coefficient.
2. The sealing surface is made of stainless steel and carbide, with long life.
3. Flexible graphite packing, reliable sealing, light and flexible operation.
4. The driving mode is manual, pneumatic, electric, gear drive.
5. The structure is elastic wedge single gate, rigid wedge single gate and double gate.
Implementation Standards
Design specifications: GB / T 12234
Structure length: GB / T 12221
Connecting flange: r0CT12815-08-I
Test and inspection: JB / T 9092
Pressure - Temperature: GB / T 9131
Product Identification: GB / T 12220
Performance Parameters
Nominal pressurePN(MPa) |
case |
test pressure(MPa) |
Sealed |
|
Sealed (liquid) |
Seal (gas) |
|||
1.6 |
2.4 |
1.8 |
0.6 |
1.8 |
2.5 |
3.8 |
2.8 |
0.6 |
2.8 |
4.0 |
6.0 |
4.4 |
0.6 |
4.4 |
6.4 |
9.6 |
7.0 |
0.6 |
7.0 |
10.0 |
15.0 |
11.0 |
0.6 |
11.0 |
16.0 |
24.0 |
18.0 |
0.6 |
18.0 |
Suitable medium and applicable temperature
Shell material |
Suitable media |
Applicable temperature (℃) |
Carbon steel (C type) |
Water, steam, oil |
≤425 |
Chromium nickel titanium steel (P type) |
Nitric acids |
≤200 |
Chrome nickel molybdenum titanium steel (R type) |
Acetic acid |
≤200 |
Chrome-molybdenum steel (type I) |
Water, steam, oil |
≤550 |
The main part material
Body, bonnet |
Valve plate, seat |
Valve stem |
Stem nut |
filler |
Handwheel |
Carbon steel |
High-quality carbon steel + carbide or stainless steel |
Chrome stainless steel |
Aluminum bronze |
Graphite asbestos packing |
Malleable iron |
Chromium nickel titanium steel |
Stainless steel, stainless steel + cemented carbide |
Chrome nickel-titanium stainless steel |
Aluminum bronze |
Teflon |
Malleable iron |
Chromium nickel molybdenum titanium steel |
Stainless steel, stainless steel + cemented carbide |
Chrome nickel-titanium stainless steel |
Aluminum bronze |
Teflon |
Malleable iron |
Chrome-molybdenum steel |
Alloy steel + Carbide |
Chrome-molybdenum steel |
Aluminum bronze |
Flexible asbestos |
Malleable iron |
The main shape and connection dimensions
Nominal diameter |
The main dimensions and connection dimensions |
|||||||
L |
D |
D1 |
D2 |
b |
Z-d |
H |
D0 |
|
Z41H-16 |
||||||||
15 |
130 |
95 |
65 |
45 |
14-2 |
4-Φ14 |
170 |
120 |
20 |
150 |
105 |
75 |
55 |
14-2 |
4-Φ14 |
190 |
140 |
25 |
160 |
115 |
85 |
65 |
14-2 |
4-Φ14 |
205 |
160 |
32 |
180 |
135 |
100 |
78 |
16-2 |
4-Φ18 |
270 |
180 |
40 |
200 |
145 |
110 |
85 |
16-3 |
4-Φ18 |
310 |
200 |
50 |
250 |
160 |
125 |
100 |
16-3 |
4-Φ18 |
358 |
240 |
65 |
265 |
180 |
145 |
120 |
18-3 |
4-Φ18 |
373 |
240 |
80 |
280 |
195 |
160 |
135 |
20-3 |
8-Φ18 |
435 |
280 |
100 |
300 |
215 |
180 |
155 |
20-3 |
8-Φ18 |
500 |
300 |
125 |
325 |
245 |
210 |
185 |
22-3 |
8-Φ18 |
614 |
320 |
150 |
350 |
280 |
240 |
210 |
24-3 |
8-Φ23 |
674 |
360 |
200 |
400 |
335 |
295 |
265 |
26-3 |
12-Φ23 |
811 |
400 |
250 |
450 |
405 |
355 |
320 |
30-3 |
12-Φ25 |
969 |
450 |
300 |
500 |
460 |
410 |
375 |
30-3 |
12-Φ25 |
1145 |
580 |
350 |
550 |
520 |
470 |
435 |
34-4 |
16-Φ25 |
1280 |
640 |
400 |
600 |
580 |
525 |
485 |
36-4 |
16-Φ30 |
1452 |
640 |
Z41H-25 |
||||||||
15 |
130 |
95 |
65 |
45 |
16-2 |
4-Φ14 |
170 |
120 |
20 |
150 |
105 |
75 |
55 |
16-2 |
4-Φ14 |
190 |
140 |
25 |
160 |
115 |
85 |
65 |
16-2 |
4-Φ14 |
205 |
160 |
32 |
180 |
135 |
100 |
78 |
18-2 |
4-Φ18 |
270 |
180 |
40 |
200 |
145 |
110 |
85 |
18-3 |
4-Φ18 |
310 |
200 |
50 |
250 |
160 |
125 |
100 |
20-3 |
4-Φ18 |
358 |
240 |
65 |
265 |
180 |
145 |
120 |
22-3 |
8-Φ18 |
373 |
240 |
80 |
280 |
195 |
160 |
135 |
22-3 |
8-Φ18 |
435 |
280 |
100 |
300 |
230 |
190 |
160 |
24-3 |
8-Φ23 |
500 |
300 |
125 |
325 |
270 |
220 |
188 |
28-3 |
8-Φ25 |
614 |
320 |
150 |
350 |
300 |
250 |
218 |
30-3 |
8-Φ25 |
674 |
360 |
200 |
400 |
360 |
310 |
278 |
34-3 |
12-Φ25 |
811 |
400 |
250 |
450 |
425 |
370 |
332 |
36-3 |
12-Φ30 |
969 |
450 |
300 |
500 |
485 |
430 |
390 |
40-4 |
16-Φ30 |
1145 |
580 |
350 |
550 |
550 |
490 |
448 |
44-4 |
16-Φ34 |
1280 |
640 |
400 |
600 |
610 |
550 |
505 |
48-4 |
16-Φ34 |
1452 |
640 |

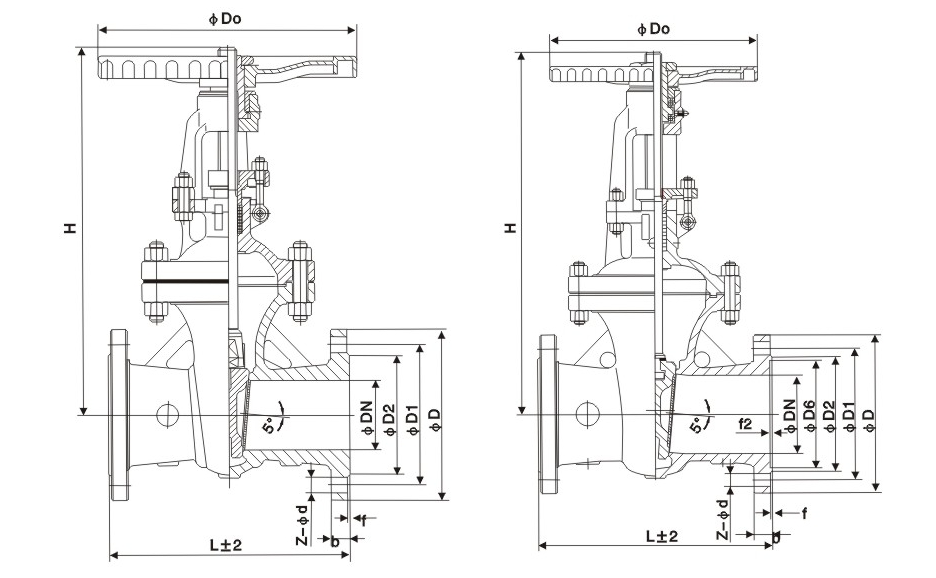

Structure picture
All text, data and pictures in this article are for reference only. If you need to see more product performance, structure size, price and other details, please contact us.
